HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

Product Categories
GUANGDONG HWASHI TECHNOLOGY INC.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

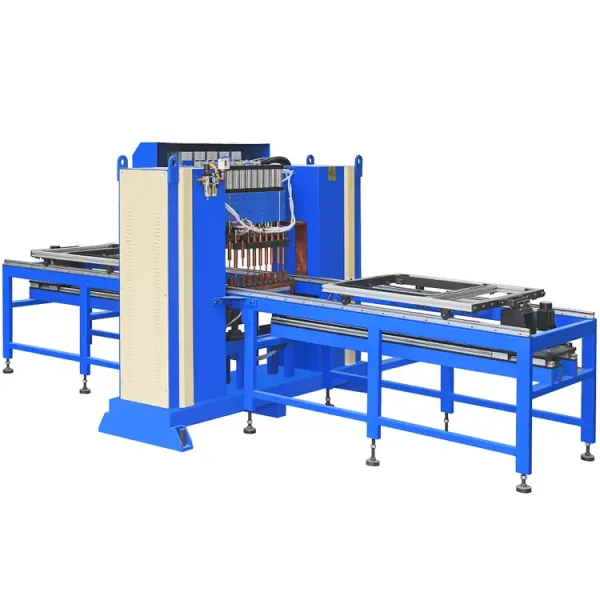

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

  • 1
  • 2

Brand Name : HWASHI

Model Number : WL-SF-MF-100K/120K/160K

Certification : CE

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C,T/T

Supply Ability : 50 sets per month

Delivery Time : 20 - 30 working days after received your payment

Packaging Details : Sea worthy wooden package

Product Name : HWASHI Sheet Metal Custom Spot Welder Steel Floor Galvanized Panel Automatic Spot Welding Machine for Metal Plate

Dimension(L*W*H) : 2500x1200x1950mm

Weight : 800KG

Usage : Welding of steel panel

Warranty : 1 Year

Transformer : MF DC transformer

Contact Now

HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal
HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal
HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal
Product Features
  • Intellectual touch-screen microcomputer controller with complete digital control
  • Automatic detection and compensation system prevents loose welding and false welding
  • Multiple welding electrodes that move from left to right for flexible operation
  • Suitable for welding various product types without metal sheet deformation
  • T-Type welding method for sealed work pieces
  • Maximum welding current up to 200KA
  • Precision locating mode with groove R bottom mold and top clamping
  • Mosaic structure electrodes with floating terminal device
  • Dual-side feeding capability for optimized welding efficiency
HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

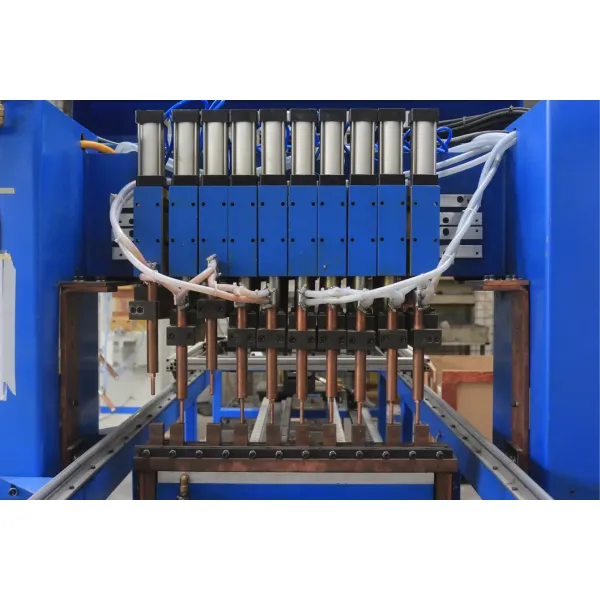

Custom Welding Heads
Processing and design according to the drawings of each metal plate product (customized)
HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal HWASHI Automatic Spot Welding Machine with 34000A Max Current 1200mm Adjustable Width and Digital Touch Screen Control for Sheet Metal

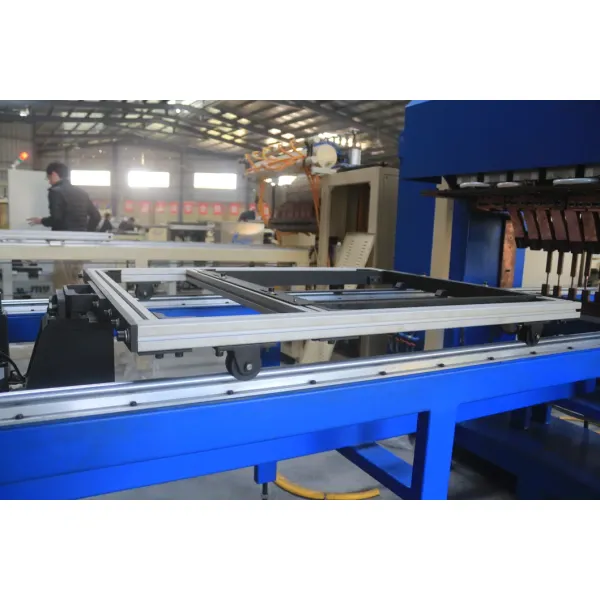

Automatic Feeding and Welding System
This Automatic Spot Welding Machine uses conveyor belt feeder to transport workpieces to setting positions for automated welding operations.
Technical Specifications
Item Specification Description
Input voltage 380V, 2-phases Customizable, but only for 2-phases
Input current 400A
Output voltage 12V
Max. Welding current 34000A
Effective welding width 1200mm (adjustable)
Effective welding length 3000mm (adjustable)
Feeding Rack Mobile speed 0.5m/sec Servo motor transmitting
Upper welding air cylinder 100x100mm Double force pressing cylinder
Lower cylinder 160x100mm
